Style of the fingers

Space at the start and end in multiple of normal spaces

Height of the bottom lips sticking out (multiples of thickness) (finger hole edge only!)

Space below holes of finger hole edge (multiples of thickness)

Extra material to remove away burn marks (multiples of thickness)

Width of the fingers (multiples of thickness)

Extra space to allow finger move in and out (multiples of thickness)

Space between fingers (multiples of thickness)

Width of finger holes (multiples of thickness)

How much should fingers widen (-80 to 80)

How far the dove tails stick out of/into the edge (multiples of thickness)

Radius used on all four corners (multiples of thickness)

From one middle of a dove tail to another (multiples of thickness)

(in mm)

(in mm)

(in mm)

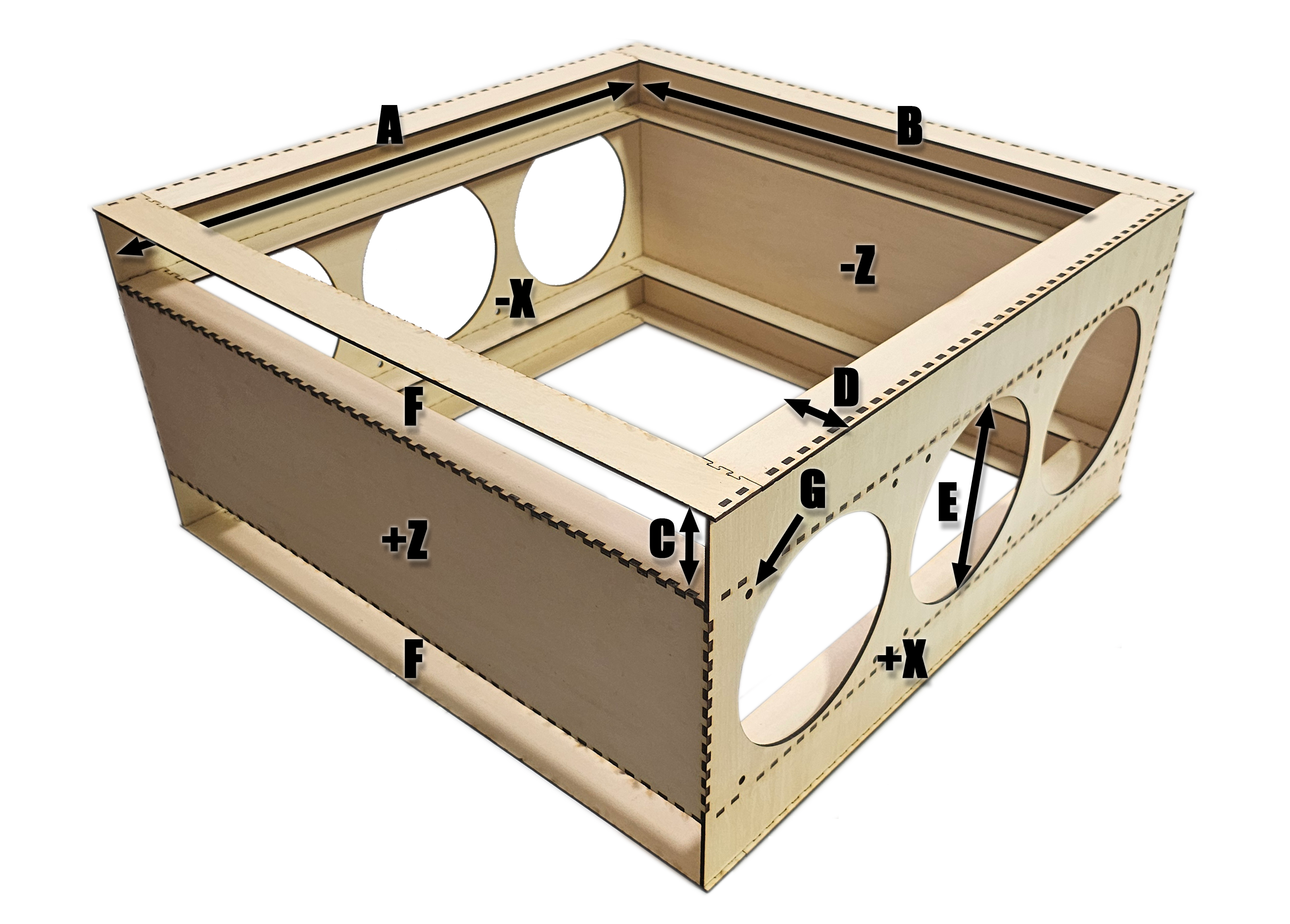

Rim around the edge of the filter holing it in place (in mm)

Diameter of the fans (in mm)

Filters on both sides or only one (for wall mounted builds)

Split large frame pieces for smaller laser cutting beds

Number of fans on the left (-X) side (-1 for max number)

Number of fans on the right (+X) side (-1 for max number)

Number of fans on the top (+Z) side (-1 for max number)

Number of fans on the bottom (-Z) side (-1 for max number)

Diameter of fan screw holes (in mm)

Thickness of the material (in mm)

Format of resulting file

Width of tabs holding the parts in place (in mm)(not supported everywhere)

Add a QR Code with link to these specifications

Print surrounding boxes for some structures

label the parts (where available). Set to engrave, not cut.

Print reference rectangle with given length (in mm)(zero to disable)

Style for inner corners

Kerf correction, larger values for tighter fit (in mm)
